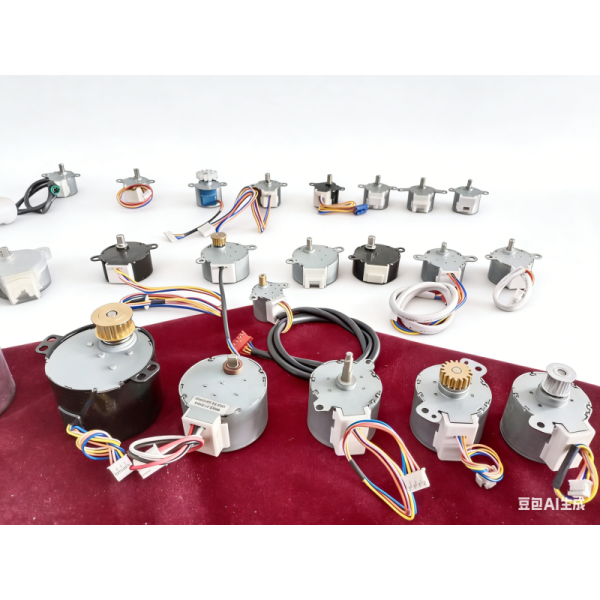

High Torque 24BYJ48 Geared Stepper Motor with 5.625°/64 Step Angle for Precision Control in Smart Home and Industrial Applications

Name: High Torque 24BYJ48 Geared Stepper Motor with 562564 Step Angle for Precision Control in Smart Home and Industrial Applications
Brand: XM-Motor
Price: 0.5 USD

Wholesale High Torque 24BYJ48 Geared Stepper Motor with 5.625°/64 Step Angle for Precision Control in Smart Home and Industrial Applications from china suppliers

Brand Name : XM-Motor

Model Number : 24BYJ48

Certification : ISO9001 ROHS

Place of Origin : China

MOQ : 5 pcs

Price : 0.5~6 USD/PC

Payment Terms : T/T

Supply Ability : 200,000 PCS/month

Delivery Time : 20 to 30 days

Packaging Details : Carton

Voltage : 12V 5V 24V 48V DC for select

Step Angle : 5.625° /64

Resistance : 20 to 300Ω select

Application : Air guide, Air swing, air commutator,hvac parts

Name : High Torque Permanent Magnet Synchronous Motor with 5V DC and 24BYJ48 12V DC Geared Motor System for Precision Control

Service : OEM & ODM

Warranty : 12 months

Inner package : Anti-static bag+foam fixed

Contact Now

Introduction and Applications of 24BYJ48 Mini Stepper Motor

The 24BYJ48 is a widely used permanent magnet geared stepper motor, featuring compact structure, high precision and stable

low-speed operation, which makes it suitable for various small-scale motion control scenarios.

1. Model Definition

24: Indicates the motor’s outer diameter is 24 mm
B: Abbreviation for stepper motor
Y: Represents permanent magnet type
J: Stands for geared configuration
48: Means 4-phase 8-step working mode

24BYJ48 Series Paramenters:

High Torque 24BYJ48 Geared Stepper Motor with 5.625°/64 Step Angle for Precision Control in Smart Home and Industrial Applications

2. Structural & Electrical Characteristics

Structural Features: Equipped with 24 magnetic poles and 48 teeth, the motor boasts a compact size, light weight, high resolution and excellent positioning accuracy.
Electrical Parameters: Common rated voltages are 5V and 12V. For the 5V version, the typical coil resistance is 60Ω; for the 12V version, resistance values range from 200Ω to 300Ω. The step angle is 5.625°/64, and the insulation class is Grade E.
Performance Advantages: The standard model (e.g., 24BYJ48-2002) delivers stable low-speed operation with low noise. The upgraded model (24BYJ48-S) offers higher resolution, improved precision and enhanced holding torque.
Drive Mode: Adopts 1-2 phase excitation unipolar drive; the rotation angle and speed can be precisely controlled by adjusting pulse signals.

3. Typical Applications

Smart Home Appliances
- Air conditioner air deflector adjustment
- Refrigerator damper control
- Smart toilet cover opening/closing and flushing system
- Projector lens focusing and zooming
- Air purifier airspeed regulation
Industrial & Security Equipment
- PTZ rotation of surveillance cameras for angle adjustment
- Positioning and aiming systems in security monitoring devices
Office Automation
- Paper feeding and component positioning in printers and copiers
Medical Devices
- Sample conveying mechanisms in small precision testing instruments (especially for the upgraded 24BYJ48-S model with higher accuracy requirements)

Work shop:

Core Selling Points of 24BYJ48 Mini Stepper Motor

Ultra-Compact & Lightweight Design

With an outer diameter of only 24mm, the motor features a space-saving structure that fits seamlessly into small-sized equipment (e.g., smart home devices, mini medical instruments) without compromising installation flexibility.
High Precision & Stable Motion Control

Boasting a step angle of 5.625°/64 and 4-phase 8-step operation, it delivers accurate positioning and smooth low-speed rotation with minimal noise, ideal for scenarios requiring precise displacement adjustment.
Flexible Voltage Compatibility

Available in 5V and 12V rated voltage versions with matched coil resistance (60Ω for 5V, 200–300Ω for 12V), it adapts to diverse power supply configurations of consumer and industrial equipment.
Reliable Unipolar Drive System

Adopts mature 1-2 phase excitation unipolar drive mode, which is easy to match with mainstream stepper motor drivers, reducing R&D and integration costs for equipment manufacturers.
Wide-Range Adaptability Across Industries

Suitable for smart home, security, office automation and medical sectors; the upgraded 24BYJ48-S model further enhances holding torque and resolution for high-precision application scenarios.
Cost-Effective & Durable Performance
Built with high-quality permanent magnet materials and precision gear components, it offers long service life and stable operation at a competitive price point, maximizing cost-performance for bulk procurement.

FAQ:

Q: What is the brand name of the Permanent Magnet Synchronous Motor product?
A: The brand name is XM-Motor.
Q: What certifications does the Permanent Magnet Synchronous Motor product have?
A: It is certified with ISO9001 and ROHS.
Q: Where is the Permanent Magnet Synchronous Motor product manufactured?
A: The product is manufactured in China.
Q: What is the minimum order quantity for the Permanent Magnet Synchronous Motor?
A: The minimum order quantity is 5 pieces.
Q: What is the price range for the Permanent Magnet Synchronous Motor product?
A: The price ranges from 0.5 to 6 USD per piece.
